CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel

1セット
MOQ
USD 5000~6000
価格
CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
体の大きさ: 1400*1100*2000mm
電圧: 220V
力: 400W
クランプ方法: パンヌーマロック
制御空気圧: 0.2-1.0Mpa
床面積: 1400×1100MM
CNCかどうか: CNC
応用: 金属形作
状態: 新しい
保証: 1年
ハイライト:

CNC Control Laser Plate Welder

,

±0.1mm Precision CNC Welding Machine

,

5m/min Speed Stainless Steel Welder

基本情報
起源の場所: 広東省、中国
ブランド名: Star Power
証明: CE ISO
モデル番号: SSW-220V
お支払配送条件
パッケージの詳細: フィルムか木製のケース
受渡し時間: 15日間
支払条件: LC、T/T
供給の能力: 50000 PCS/年
製品の説明

CNC Automatic Stainless Steel-Specific Laser Plate Welder


Product Descrinption



1.Equipment Positioning: Developed by Star Power, the CNC Automatic Stainless Steel-Specific Laser Plate Welder is customized for mass production lines of stainless steel sinks and kitchenware. It suits 1-5mm stainless steel plates and solves the industry pain points of low precision and slow efficiency in traditional welding.
2.Core Technology: Integrating CNC control system and laser deep penetration welding technology, it achieves welding precision of ±0.1mm, minimal heat-affected zone, and weld strength over 85% of the base metal, perfectly compatible with 304/316 and other mainstream stainless steel materials.
3.Automation Configuration: Equipped with an integrated automatic feeding, positioning and welding system, it offers an optional double torch, reaching a maximum welding speed of 5m/min. Its efficiency is 60% higher than traditional machines while energy consumption is reduced by 30%, suitable for large-scale production.
4.Intelligent Control: The real-time weld quality monitoring module supports multiple welding modes like straight seam and seamless welding. It can link with MES systems, adapt to unmanned production lines, and greatly reduce manual intervention and debugging time.
5.Value Advantages: It helps enterprises realize large-scale, high-quality production of stainless steel kitchenware, reduce labor, energy and post-processing costs, and significantly enhance product premium capacity and core market competitiveness.

Product Parameters

Body size 1400x1100x2000mm
Voltage 220V
Power 400W
The clamping way Penuama-lock
Control method Starart CNC system
Compressed air pressure 0.2-1.0MPa
Floor space 1400x1100mm



After Sales Service


CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel 0

We are committed to providing you with all-round and high-quality after-sales service, so that you have no worries when using our products.


We are well aware of the importance of after-sales service to customers and always adhere to the customer-centered principle and solve problems for you with professional, efficient and considerate service. Choosing our products means choosing a sense of security and guarantee.


















Product Photos

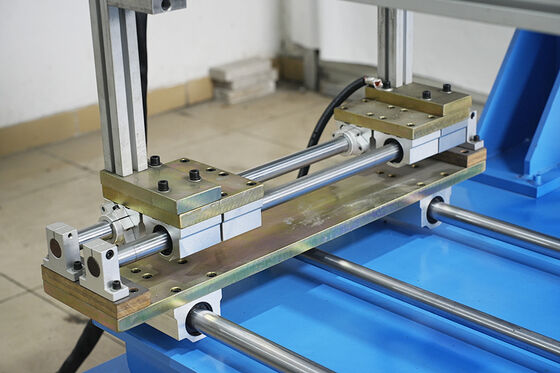

CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel 1

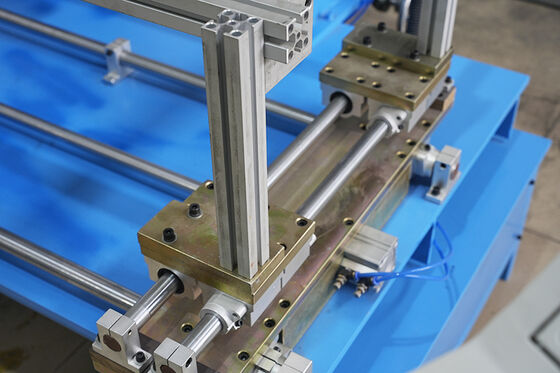

CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel 2

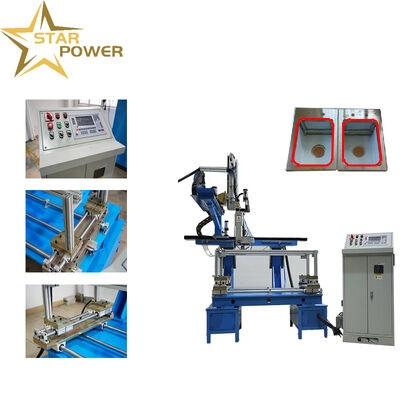

CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel 3

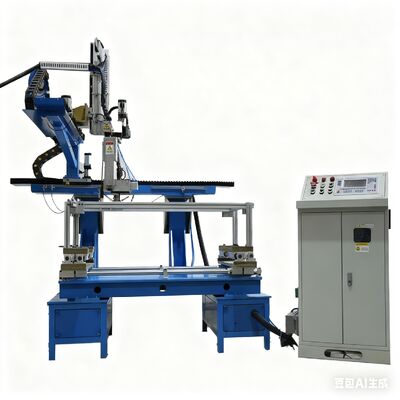

CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel 4

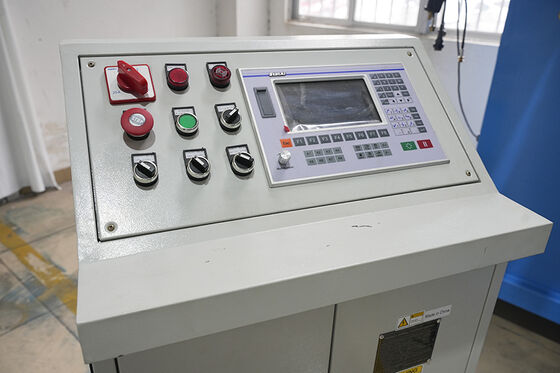

CNC Automatic Laser Plate Welder with ±0.1mm Precision and 5m/min Speed for Stainless Steel 5

Our Company


Foshan Star Power Technology Co., Ltd., founded in 2022 and based in Foshan, focuses on one-stop solutions for metal processing. Core products include laser plate welding machines, laser cutting machines and other industrial equipment, as well as supporting products like metal materials, molds and CNC machine tools, which are well-adapted to stainless steel sink and aluminum cookware production lines. Equipped with advanced air-cooled design and self-developed control systems, the equipment features high welding precision, fast speed, over 30% lower energy consumption and 60% higher efficiency than traditional equipment. With import and export qualifications, the company provides global supply-demand docking and technical integration services, helping enterprises reduce costs and improve efficiency through high-quality products and one-stop services.


Our tenet is: To become the most trusted technical partner of global hardware manufacturers !
