Name: Dual-Station Aluminum Brazing Machine for Cookware 580-620°C 0.3-3 MPa
Brand: Foshan Star Power Technology Co.Ltd
SKU: CBW-2S-COOKPRO
Price: 50,002.00 USD
Availability: InStock

特徴ギャラリー製品の説明見積依頼

特徴

仕様

ハイライト:

aluminum brazing machine for cookware

dual-station cookware brazing machine

high-temperature cookware brazing machine

基本情報

起源の場所: 中国広州

ブランド名: Star Power

証明: ISO CU

モデル番号: CBW-2S-COOKPRO

お支払配送条件

パッケージの詳細: フィルム付きの金属フレーム

受渡し時間: 1か月

支払条件: T/T、L/C

供給の能力: 1か月あたり100セット/セット

ギャラリー

Dual-Station Aluminum Brazing Machine for Cookware 580-620°C 0.3-3 MPa

製品の説明

Product Description

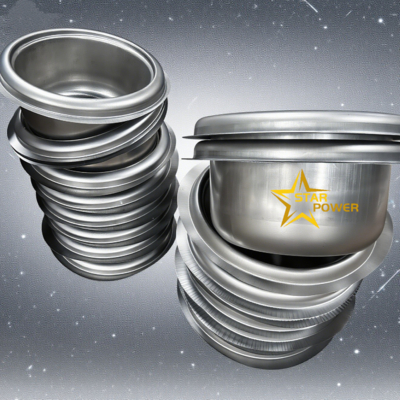

The CBW-2S-CookPro Dual-Station Industrial Aluminum Brazing Machine is a specialized welding equipment engineered specifically for cookware manufacturing, focusing on high-precision joining of aluminum pot/pan bodies, handles, and edge components. Designed with two independent workstations to maximize production efficiency, it caters to mass production of household cookware including frying pans, saucepans, stockpots, and Dutch ovens as shown in the provided images.

Featuring a cookware-specific temperature control system, the machine maintains optimal brazing temperatures between 580-620°C (±2°C accuracy) - the ideal range for aluminum cookware to ensure strong, food-safe joints without compromising material integrity. The programmable pressure application unit (0.3-3 MPa) delivers gentle yet consistent force, preventing deformation of thin-gauge cookware walls while ensuring complete fusion of handle brackets and rim seams.

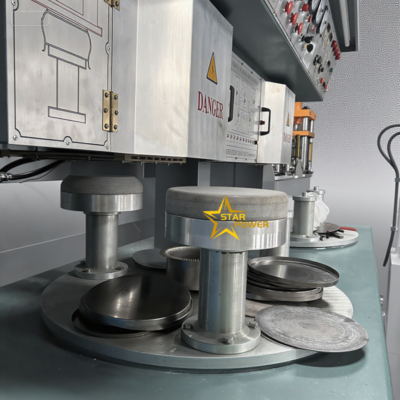

Each workstation is equipped with custom-machined aluminum die sets (compatible with 16-32cm diameter cookware) and quick-change handle fixtures that accommodate various cookware designs - from traditional riveted handles to modern ergonomic designs. The 180mm diameter graphite heating platens provide uniform heat distribution across curved pot surfaces, ensuring watertight seams critical for cookware functionality.

The intuitive control panel includes 10 programmable cookware-specific presets (frying pan, saucepan, stockpot, etc.) with adjustable cycle times (10-180 seconds) and temperature profiles optimized for different aluminum alloys (3003, 5052, 6061). Safety features include heat-resistant work surfaces, automatic cool-down cycles, and operator presence sensors to meet food contact equipment standards.

Built with a compact green steel frame (1800×1200×2000mm) that integrates seamlessly into cookware production lines, the machine includes a dedicated fume extraction port and food-grade lubricant system. It supports both TIG-assisted brazing and flame-free induction heating modes, making it suitable for stainless steel-aluminum composite cookware and ceramic-coated pot manufacturing.

Product Parameters

Parameter	Specification
Model Number	CBW-2S-CookPro
Application	Aluminum cookware seam welding, handle attachment, edge joining
Workstations	2 independent stations with synchronized control
Temperature Range	580-620°C (cookware-specific optimal range)
Temperature Accuracy	±2°C
Pressure Range	0.3-3 MPa (adjustable in 0.1 MPa increments)
Heating Platen	180mm diameter graphite with non-stick coating
Cookware Diameter Capacity	16-32cm (compatible with standard pot/pan sizes)
Cycle Time	10-180 seconds (programmable with 10 cookware presets)
Power Supply	380V/3Ph/50Hz
Rated Power	12 kW
Cooling System	Forced air + water-cooled platens (5 L/min flow rate)
Control System	PLC with 7-inch touchscreen, recipe storage (50 programs)
Compatible Materials	Aluminum alloys (3003, 5052, 6061), stainless steel (clad layers)
Handle Attachment Types	Riveted, welded, and screwed handle brackets
Overall Dimensions (L×W×H)	1800×1200×2000mm
Net Weight	1150 kg
Safety Certification	CE, FDA food contact material compliant
Fume Extraction	100mm diameter extraction port (compatible with industrial systems)
